工艺流程：

Process flow:

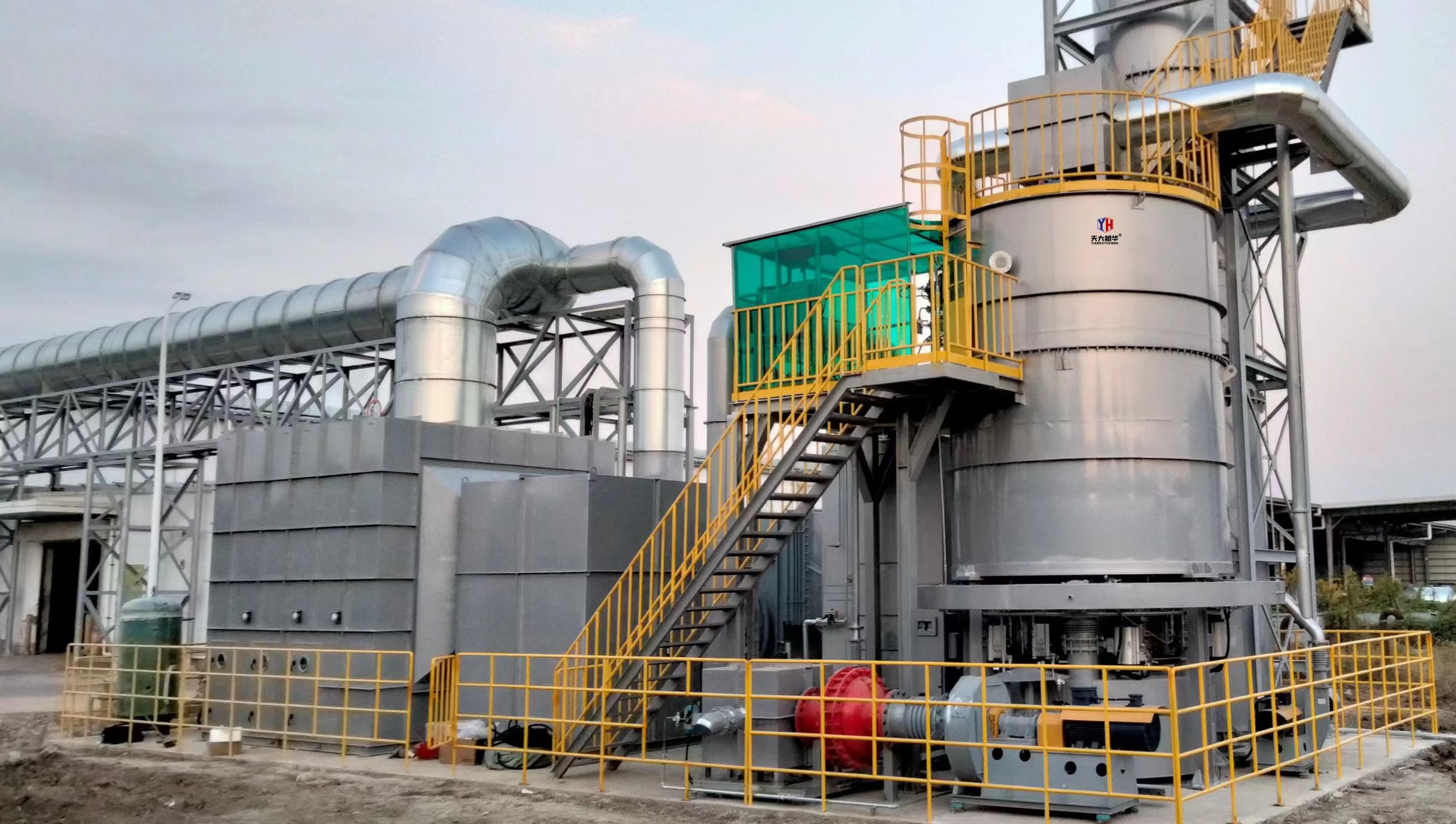

这种处理系统组合十分紧凑，集吸附、脱附和催化燃烧于一体。

This treatment system combination is very compact, integrating adsorption, desorption, and catalytic combustion.

对于连续工作，设有两个吸附床交替使用，以保证生产和净化过程的连续操作。

For continuous work, two adsorption beds are used alternately to ensure continuous operation of production and purification processes.

对于间断工作，采用单个吸附床就能问题。

For intermittent work, using a single adsorption bed can solve the problem.

吸附箱：

Adsorption box:

吸附：有机废气经过干式漆雾过滤器去除漆雾，然后进入填充了活性炭的吸附床，吸附净化。

Adsorption: Organic waste gas is first removed by a dry paint mist filter, and then enters an adsorption bed filled with activated carbon for adsorption purification.

吸附后的净化气体直接排空。

The purified gas after adsorption is directly discharged.

脱附箱：

Desorption box:

脱附：当流出床层吸附饱和时，即停止本床层的吸附操作（切换到另一吸附床）。

Desorption: When the outflow bed is saturated with adsorption, the adsorption operation of this bed is stopped (switching to another adsorption bed).

对于达到允许吸附量的吸附床，按一定的浓度比把吸附在活性炭上的有机物用热风进行脱附。

For an adsorption bed that reaches the allowable adsorption capacity, the organic matter adsorbed on activated carbon is desorbed using hot air at a certain concentration ratio.

脱附出来的高浓度有机气体再经过换热器预热，进入催化床燃烧分解为二氧化碳和水。

The high concentration organic gas desorbed is preheated by a heat exchanger and enters the catalytic bed for combustion and decomposition into carbon dioxide and water.

催化燃烧箱：

Catalytic combustion chamber:

在催化燃烧阶段，不需要外加热源。

In the catalytic combustion stage, no external heat source is required.

燃烧后的尾气一部分排往大气，一部分送往吸附床用于活性炭脱附再生。。

Part of the exhaust gas after combustion is discharged into the atmosphere, while another part is sent to the adsorption bed for activated carbon desorption and regeneration..
